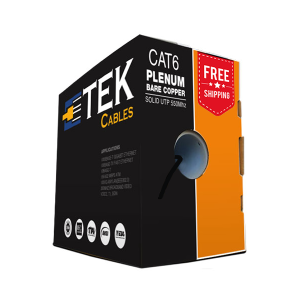

Cat6 Plenum Bare Copper Network Cable Black
Original price was: $199.99.$185.00Current price is: $185.00.
★ Free Shipping
★ 23AWG 4-Pair conductors 10Gigabit
★ Unshielded twisted pairs – U/UTP
★ Bandwidth tested up to 550 MHz
★ Supports PoE++ (802.3bt) 4PPoE, up to 90W
★ Compliant with ANSI/TIA/EIA-568B.2
★ ISO/IEC 11801 Standards. RoHS Compliant
★ Fluke Test Passed over 90m
- Description
- Additional information
- Reviews (7)
- Store Policies
- Inquiries
Description
Etek Cables Our Cat6 Plenum Bare Copper 1000ft Plenum CMP Rated UTP Bulk Ethernet Cable is Designed to distribute data, voice and video with applications up to 550Mhz. Our CAT6 Plenum CMP Rated Cable conductors featuring 23 AWG 4 Pairs with unshielded twisted pair (UTP) are Solid Bare Copper, which insures performance with high speed Gigabit Ethernet. Etek Cables is the perfect fit for reliable installations where the cable will be used indoors.
It also Supports Ethernet 100BASE-TX, 100BASE-VG and 155 ATM. Particularly suited for high bandwidth applications such as 622 ATM. Wideband Ethernet 1000BASE-T and emerging applications with anticipated data rate.
FEATURES:
§ Cat6 Plenum CMP Rated Cable
§ Low Smoke Plenum Rated Jacket
§ Designed for Indoor Plenum Rated indoor handling space Installations
§ High-Performance Data Communications Cable
§ Tested up to 550Mhz
§ Flame-Retardant Plenum Rated jacket
§ Designed for Indoor Plenum Rated Installations

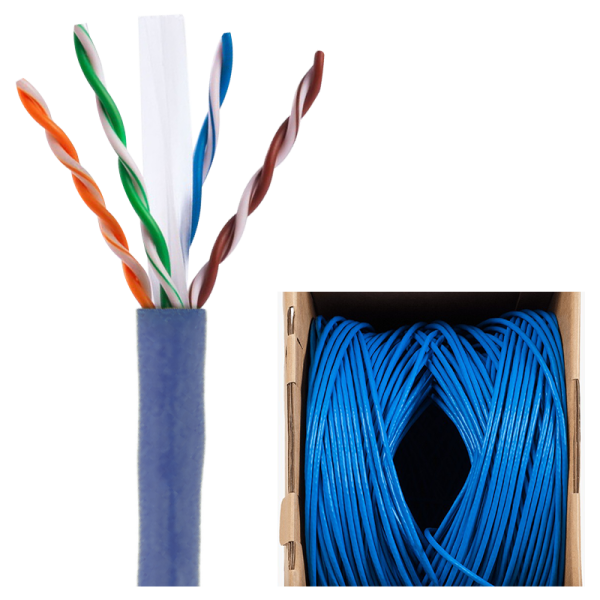

§ Category 6 Unshielded Twisted Pair (UTP) Cable
§ 4-Pair Easily Identified Color Striped Pairs
§ 23 AWG Solid Bare Copper Conductors
§ Excellent Attenuation and Crosstalk Characteristics
§ Cat6 1000ft cable available in Easy Pull Box
§ Suitable for local area network (Lan)
§ 0.5 mm thickness of Plenum jacket
§ Excellent Attenuation and Cross talk
Characteristics
§ Available in Blue Color
§ Length 1000ft
CONDUCTOR:
§ FEP Insulation
§ 23 AWG, 0.58mm Dia.
§ Min Point Thickness = 0.207mm
§ Insulation Dia. = 1.02mm
§ Twisted Pair Dia.= 2.02mm
§ Avg. Thickness = 0.225mm
CERTIFICATION:
§ National electric code (NEC)
§ Compliant with ANSI/TIA/EIA-568B.2, ISO/IEC 11801 Standards.
§ RoHs compliant
Additional information
| Location | |
|---|---|
| SKU | |
| upc |
7 reviews for Cat6 Plenum Bare Copper Network Cable Black
Add a review
You must be logged in to post a review.
General Inquiries
There are no inquiries yet.
QI***A –
Cable is strong, and solid copper wires. Very high quality.
Ja***S –
I installed my first network and used this wire. It seems to work fine.
Ja***S –
I installed my first network and used this wire. It works very good
Si***M –
Great product to run new lines through my home for internet/security system! Will buy again if I need more than 1000ft!!!
MI***j –
Pulled easily, terminated well and data passes through as expected.
Si***M –
Works perfectly. Really enjoy the sequential numbering on the cable.
ap***ra*** –
I am not a cable quiz guy but this appears to be a very good cable. I would buy it again if I ever needed
